How to Use Ohio Epa 4309

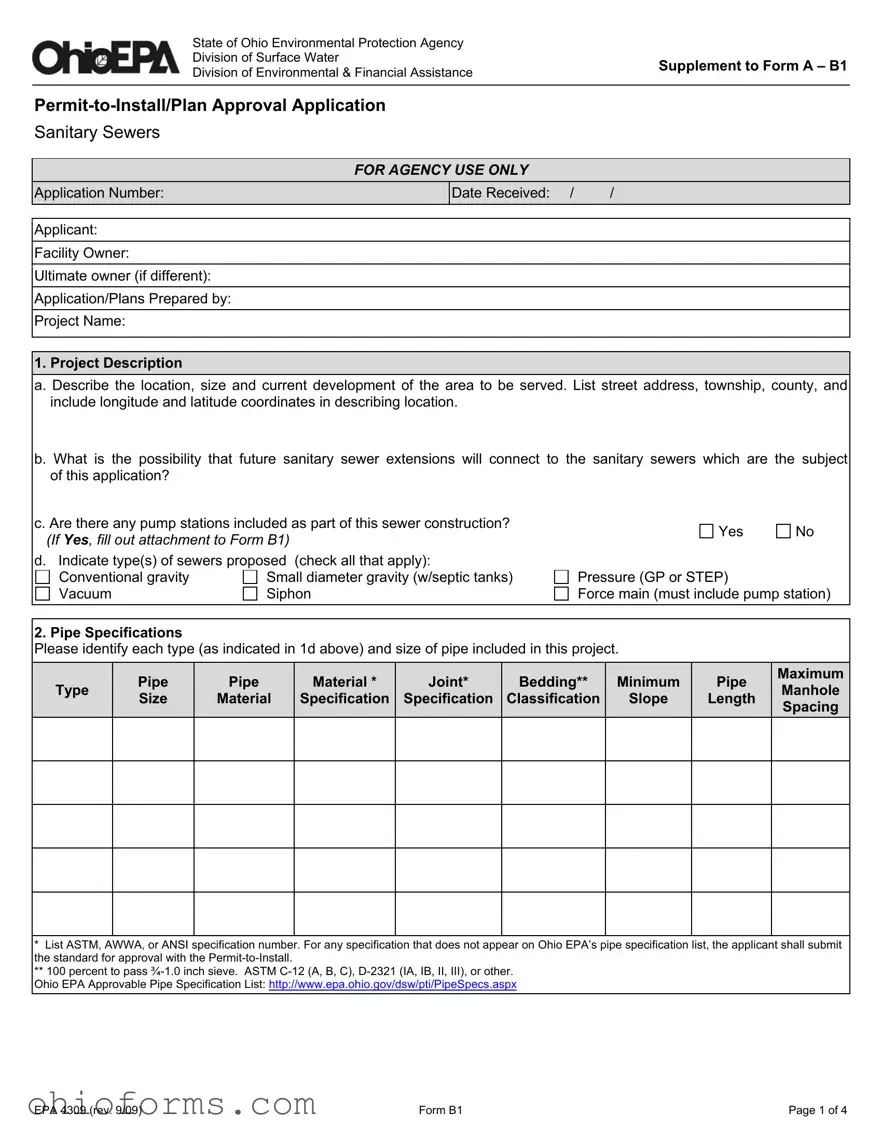

Filling out the Ohio EPA Form 4309 B1 involves providing detailed information about the sanitary sewers project for which a permit-to-install or plan approval is being sought. This form is used to review the project's specifications, including descriptions, designs, and the protective measures taken to prevent environmental harm. Following the steps outlined below will help ensure that all necessary details are accurately recorded, facilitating a smoother review process by the Ohio Environmental Protection Agency.

1. Start with the "Application Number" and "Date Received" sections at the top of the form. These will be completed by agency personnel.
2. Under "Applicant," enter the name of the individual or organization applying for the permit. Follow by entering details for the "Facility Owner" and "Ultimate owner (if different)" if applicable.
3. In the "Application/Plans Prepared by" section, provide the name of the engineer or firm that prepared the application and plans.
4. For "Project Name," fill in the official name of the project.
5. In section 1, "Project Description," provide a detailed description as requested in parts a, b, c, and d. This includes the location, size, current development of the area, future connection possibilities, inclusion of pump stations, and types of sewers proposed.
6. For section 2, "Pipe Specifications," detail each type and size of pipe included in your project, referring to the specific ASTM, AWWA, or ANSI specification numbers as needed.
7. In section 3, "Design Flow in Proposed Sewer," enter the expected flows at startup and design, including average daily flow and peak hourly flow, followed by the hydraulic capacity of the sewer.
8. Under section 4, "Receiving Wastewater Treatment Facility," provide information about the treatment facility, including whether it has adequate capacity for the proposed flows, and if any expansion is intended.
9. Section 5, "Sewer Design," requires responses to specific design considerations regarding depth, freezing prevention, energy gradient maintenance, displacement protection, and the presence of overflows or bypasses.
10. Fill out section 6, "Stream Protection," if relevant, providing details on stream crossings and protective measures.
11. In section 7, "Manhole Design," describe the type, material specification, and design features of manholes included in the project.
12. Section 8, "Protection of Water Supplies," asks for details on the separation from water supplies, encasement, or construction details to ensure no contamination occurs.
13. For section 9, "Installation and Testing," specify the installation inspector’s details, types of sewer tests to be used, and manhole testing methods.
14. In section 10, confirm the sewer use ordinance that prohibits clean water connections to the sanitary system, including the date adopted and the enforcement details.
15. Under section 11, "Authorities," indicate if inter-municipal agreements are in place for county, village, or municipal sewers tributary to another political entity’s treatment plant.
16. Ensure all required submittals listed in section 12 are included with the application, such as detailed plans, technical specifications, and completed Form A along with any relevant addenda.
17. Sign and date the form under section 13, certifying the accuracy of the information provided.

After completing and reviewing the form for accuracy, submit it along with all required documentation and specifications to the Ohio EPA for review. Properly completing Form 4309 B1 is crucial for obtaining the necessary approvals for your sanitary sewer project. Ensure all information is clear, correct, and comprehensive to avoid delays in the process.

What information is required for the project description in the Ohio EPA 4309 form?

The project description section of the Ohio EPA 4309 form requires detailed information about the location, size, and current development of the area to be served by the proposed sanitary sewer system. Applicants must provide the street address, township, county, and the longitude and latitude coordinates to describe the location accurately. Furthermore, the form asks whether future sanitary sewer extensions are expected to connect to the proposed construction, if any pump stations are included, and the types of sewers proposed (e.g., conventional gravity, pressure, force main, etc.). This comprehensive description ensures the agency can accurately assess the project's scope and potential impact on the environment and local infrastructure.

How are pipe specifications detailed in the form?

In the Ohio EPA 4309 form, applicants are required to list each type and size of pipe included in their project. This includes specifying the pipe material, joint, bedding classification, minimum slope, pipe length, and maximum manhole spacing, adhering to specific standards, such as ASTM, AWWA, or ANSI specification numbers. This detailed information allows for the evaluation of the project's compliance with Ohio EPA’s standards and practices, ensuring the reliability and environmental safety of the proposed sewer installation. It’s vital that any specifications not appearing on the Ohio EPA’s approvable pipe specification list be submitted for approval with the Permit-to-Install.

What does the section on design flow in the proposed sewer entail?

The design flow section of the form requires applicants to identify both the expected flows at startup and at design capacity at the terminus of the proposed sewer. Applicants must provide average daily flow and peak hourly flow in millions of gallons per day (MGD) for start-up flows and design flows, along with the hydraulic capacity of the sewer. Assumptions used for these calculations, such as residential population and non-residential flows, are indicated, ensuring that planned sewer systems are adequately designed to handle anticipated waste volumes, reducing the risk of overflows and environmental contamination.

How is the protection of water supplies addressed in the form?

The Ohio EPA 4309 form includes critical questions regarding the protection of water supplies in proximity to the proposed sewer installation. Applicants must disclose any physical connections between the sewer and any public or private potable water supply systems, including all appurtenances, and detail any public waterworks units or private wells within specific proximity to the proposed sewer. Additionally, the form requires information on the horizontal and vertical separation between sewers and water lines, ensuring that the planned sewer system does not compromise water quality. If conditions do not meet the requirements, applicants must specify the measures taken to protect the water system, highlighting the importance of preventing contamination of potable water sources.

When filling out the Ohio EPA 4309 form for sanitary sewer installation or plan approval, common mistakes can delay the processing and approval of your application. Familiarizing yourself with these errors can help ensure a smoother application process.

1. Not accurately describing the project area, including failing to provide specific location details such as longitude and latitude coordinates, street address, township, and county. This description is crucial for the EPA to visualize and understand the project's scope and location.

2. Omitting details about the possibility of future sanitary sewer extensions. Including potential extensions in your plan can demonstrate foresight and comprehensive planning, making the application stronger.

3. Incorrectly specifying pipe types, materials, and bedding specifications. It's essential to refer to the Ohio EPA's approvable pipe specification list to ensure your materials meet the required standards.

4. Neglecting to detail the anticipated flows at startup and design alongside the hydraulic capacity of the sewer. Accurate flow rates are crucial for designing a system that sufficiently meets current and future demands.

5. Failing to confirm that the receiving wastewater treatment facility has adequate capacity to handle the proposed sewer's flow. This oversight can lead to significant operational problems in the future.

6. Overlooking stream protection measures. If your project involves stream crossings or running parallel to streams, it's imperative to outline specific measures that will be taken to minimize environmental impact.

7. Incorrect or incomplete manhole design information, including types, material specifications, and positioning. Manholes play a critical role in maintaining and servicing the sewer system, so precise details are necessary.

• Not including ordinances or regulations regarding roof drains, foundation drains, and other connections to the sanitary sewer system can be a critical mistake. These documents are necessary to ensure compliance with local and state regulations.

• Lack of clarity on installation and testing procedures, including the type of sewer leakage test and manhole testing. Detailed testing protocols ensure the system's integrity and operational efficacy.

• Failing to attach or properly refer to relevant agreements or contracts when the project involves multiple political entities. Collaboration and consent among all parties involved are crucial for project approval and implementation.

Addressing these common mistakes before submitting the Ohio EPA 4309 form can significantly streamline the review process and increase the likelihood of your project's approval.

When dealing with the Ohio EPA Form 4309 for sanitary sewers, professionals often need to include several other important documents to ensure a comprehensive application. These documents support the application's details, comply with regulatory requirements, and facilitate a streamlined review process by providing a clear and complete overview of the project.

• Project Plans and Specifications: Detailed designs and technical specifications for the sewer system, including alignments, grades, types of pipes, and construction materials. These plans are essential for assessing the project's feasibility and environmental impact.
• Engineering Reports: These reports analyze the proposed sewer system's design, capacity, and impact on the existing infrastructure. They include calculations of flow rates, population served, and any potential environmental assessments required under state law.
• Hydraulic Analysis: A study that demonstrates the proposed sewer's ability to handle anticipated flows, including peak discharge and stormwater events, ensuring no adverse impacts on the system's hydraulic capacity.
• Environmental Impact Assessment: Documents assessing the project's potential effects on the environment, including considerations of local wildlife, vegetation, water quality, and land use. This assessment helps in making informed decisions on the project's viability and necessary mitigation measures.
• Stream Evaluation Addendum: Required if the sewer project involves crossing streams. This addendum assesses the impact of the sewer lines on aquatic life, stream flow, and erosion. It outlines measures to minimize damage and restore the stream area post-construction.
• Water Quality Certification: A document from the Ohio EPA indicating that the project complies with state water quality standards. This certification is crucial for projects that may affect water bodies, ensuring that the project does not impair water quality.
• Construction Permits: Local or state permits required for construction activities, including any necessary right-of-way or easement permissions. These permits ensure that the project meets all regulatory standards for safety and environmental protection.
• Inter-municipal Agreement: For projects involving multiple jurisdictions, agreements between entities are required. This includes consent and understanding regarding the construction, operation, and maintenance of the sewer system.
• Public Notification Documentation: Records of public notices and meetings related to the project. These documents demonstrate compliance with community engagement requirements, allowing for public input and addressing any concerns about the project.

In conclusion, each of these documents plays a critical role in supplementing the Ohio EPA Form 4309 application. They provide the necessary details and assurances to regulatory agencies that the proposed sanitary sewer project is well-planned, environmentally responsible, and compliant with all regulations. Ensuring that these documents are complete and accurately reflect the proposed project will aid in a smoother and more efficient review process.

The National Pollutant Discharge Elimination System (NPDES) application is closely related to the Ohio EPA 4309 form. Both are essential for managing water quality impacts associated with sanitary sewers and other discharges. The NPDES application, much like the 4309 form, requires detailed information about the discharge, including its source, composition, and anticipated impact on local water bodies. This ensures that environmental standards are met and that the discharge does not harm aquatic ecosystems or water quality.

Construction Stormwater Permit applications share similarities with the Ohio EPA 4309 form in terms of their focus on protecting water quality during and after construction projects. These applications require detailed plans showing how runoff and potential pollutants will be managed to prevent contamination of nearby streams, lakes, or wetlands. This parallels the 4309 form's emphasis on detailing the environmental impact of sanitary sewer projects and measures for mitigating potential harm to water resources.

The Safe Drinking Water Act (SDWA) Permit application is another document resembling the Ohio EPA 4309 form. Both ensure public health and environmental protection concerning water sources. The SDWA application focuses on the safety of drinking water through standards for water treatment plants and water sources, similar to how the 4309 form emphasizes ensuring that sanitary sewer systems do not adversely affect water quality.

Air Quality Permit applications, while focusing on a different environmental medium, share the goal of preventing environmental harm with the Ohio EPA 4309 form. These applications require detailed descriptions of emissions sources, control technologies, and impacts assessments to demonstrate compliance with air quality standards, paralleling the thorough analysis required of sanitary sewers' impacts on water quality in the 4309 form.

Hazardous Waste Management permits, akin to the Ohio EPA 4309 form, are crucial for protecting environmental quality and public health. Applicants must detail the types of waste, handling procedures, and disposal methods to prevent contamination of land and water, reflecting the 4309 form's focus on mitigating potential water quality impacts from sanitary sewer projects.

Wetlands Impact Permits bear a resemblance to the Ohio EPA 4309 form through their emphasis on protecting water resources. Projects impacting wetlands require a meticulous review of potential effects and mitigation strategies, similar to the scrutiny applied to sanitary sewer projects in the 4309 form to ensure they do not harm aquatic ecosystems or water quality.

Water Withdrawal Permits, while not directly related to waste disposal, share the Ohio EPA 4309 form's concern for water resource management. These permits assess the sustainability and environmental impact of withdrawing large water volumes, ensuring that such activities do not adversely affect water bodies, akin to how sanitary sewer systems are evaluated to prevent harm to water quality.

Solid Waste Facility Permits align with the Ohio EPA 4309 form in their role in environmental protection. Both types of permits require comprehensive review processes to ensure that waste management practices do not pose risks to the environment, with a particular emphasis on preventing contamination of water resources in the case of the 4309 form.

Industrial Stormwater Permits, similar to the Ohio EPA 4309 form, are designed to protect water quality from the impacts of industrial activities. Applicants must outline measures to control runoff and prevent pollutants from reaching water bodies, paralleling the 4309 form's focus on ensuring that sanitary sewers do not contaminate streams, lakes, or other aquatic ecosystems.

Underground Injection Control (UIC) Permits, while primarily aimed at regulating the underground injection of fluids, share the Ohio EPA 4309 form's concern for preventing water contamination. Both permit processes involve rigorous evaluation of how the proposed activities could affect water quality, ensuring protective measures are in place to prevent environmental harm.

When filling out the Ohio EPA 4309 form, there are several important dos and don'ts to keep in mind to ensure your application is complete and accurate. Here are five recommendations for each to guide you through the process:

Things You Should Do:

1. Review the instructions carefully: Before starting, read through the entire form and accompanying instructions to understand all the requirements.
2. Gather all necessary information in advance: Ensure you have access to detailed information about the project location, design, and specifications as required by different sections of the form.
3. Provide accurate and complete responses: Fill out each section with the most current and comprehensive information available to avoid delays in processing.
4. Attach additional documentation: If the form references the need for attachments, such as maps, plans, or additional explanations, ensure these documents are included with your submission.
5. Double-check for errors: Before submitting, review the form for any mistakes or omissions that could complicate the approval process.

Things You Shouldn't Do:

1. Avoid guessing: If you are unsure about how to answer a question, seek clarification rather than providing potentially inaccurate information.
2. Don't skip sections: Even if a question seems not to apply, confirm its irrelevance before moving on, as incomplete forms can lead to processing delays.
3. Don't use unapproved specifications: When listing specifications for pipe materials or construction methods, ensure they meet the Ohio EPA’s standards.
4. Avoid leaving deadlines to the last minute: Allow sufficient time for reviewing, gathering additional information, and if necessary, correcting the form before the submission deadline.
5. Don't forget to sign and date: An unsigned or undated form is considered incomplete and will not be processed until corrected.

When it comes to the Ohio EPA 4309 Form, a comprehensive document used for Permit-to-Install/Plan Approval Application Sanitary Sewers, there are a variety of misconceptions that can lead to confusion or errors in completion. Here’s a look at some common misconceptions and the truths behind them:

• It’s only for large construction projects. Many assume that this form is exclusively for large-scale construction projects. However, it applies to a range of projects, including small developments, that involve the installation or modification of sanitary sewers.

• The form is too complex for non-professionals. While the form is detailed, it's designed to be filled out by or with the guidance of professionals such as engineers or project planners. These experts can navigate the form's requirements effectively.

• All sections must be completed by the applicant. This is not entirely the case. Certain parts of the form are explicitly designated "FOR AGENCY USE ONLY" which indicates they are to be filled out by the EPA personnel reviewing the application.

• Future sanitary sewer extensions don’t need to be considered. Quite the contrary, one section asks specifically about the possibility of future extensions, emphasizing the need for foresight in planning.

• No technical specifications are required with the submission. The form requires detailed technical specifications for the pipes and other materials used in the project, ensuring that everything meets the state’s standards.

• If the information doesn’t precisely fit the form’s fields, it can be skipped. Not correct. The form allows for attachments and additional sheets for explanations, ensuring that all relevant details can be accurately conveyed.

• Submission via email or online is acceptable. At this time, the form and accompanying documentation often need to be submitted in hard copy, although it’s always best to check with the Ohio EPA for the most current submission guidelines.

• Manhole details may be generalized. Specific details about manhole design, spacing, and construction are required. This includes type, material specifications, and whether they are designed to prevent water infiltration.

• Environmental and stream protection measures are optional. The form requires detailed responses regarding how the project will avoid or minimize impact on streams and other natural resources, demonstrating the EPA's emphasis on environmental protection.

• No follow-up is required after submission. Typically, applicants will need to be available for questions or clarifications from the Ohio EPA as the review process goes forward. Additionally, post-approval, there may be inspections or compliance checks.

Correctly understanding and completing the Ohio EPA 4309 Form is crucial for any project involving the installation or modification of sanitary sewers. Clearing up these misconceptions ensures a smoother application process and helps projects adhere to environmental guidelines more effectively.

Filing and managing the Ohio EPA 4309 form, integral to the Permit-to-Install/Plan Approval Application for sanitary sewers, requires a meticulous understanding of its sections, compliance standards, and specificity to ensure accurate submission. Here are five key takeaways to help navigate the process:

• Comprehensive Project Description: The form mandates a detailed account of the project, including the location's geographic coordinates, current and projected development, and the specifics of the sanitary sewer system proposed. Understanding the scale, potential for future expansion, and integration with existing infrastructure is crucial for both planning and environmental impact assessment. This section underscores the importance of envisioning the project's future scope, addressing any necessary pump stations, and selecting the appropriate type of sewer system to meet both current and future needs.
• Pipe Specifications and Standards: A critical aspect of the application involves specifying the pipe types, materials, joint and bedding specifications, and adherence to approved standards. Listing each pipe's specifications ensures that proposed materials meet Ohio EPA's requirements for durability, sustainability, and environmental safety. Applicants are urged to consult the Ohio EPA Approvable Pipe Specification List, ensuring their submissions comply with recognized ASTM, AWWA, or ANSI standards, thus facilitating a smoother approval process.
• Design Flow and Capacity Analysis: Accurately identifying both start-up and design flows, alongside the hydraulic capacity of the proposed sewer, forms the backbone of the form's analytical components. These figures, calculated based on residential population and non-residential flows, inform the treatment facility's ability to manage the anticipated volume of wastewater. Such analysis prevents overloading and helps in strategizing for future development, highlighting the need for a balance between current capacity and anticipated growth.
• Environmental and Infrastructure Considerations: The form requires details on the sewer design's compatibility with the existing landscape, including stream protection, manhole design, and water supply safety measures. These elements emphasize the importance of ecological preservation and public health protection. Addressing potential interferences with water sources and ensuring the structural integrity of the sewer system against natural elements like erosion or frost heave are pivotal for sustainable environmental management.
• Installation, Testing, and Regulatory Compliance: The final aspects cover the procedural necessities for installation, the methodologies for testing sewer integrity, and adherence to local ordinances prohibiting illicit connections. Documentation of testing for leaks and deflection, as well as the enforcement of ordinances against clean water connections to the sanitary system, ensures that the project aligns with Ohio EPA's standards for functionality and environmental safeguarding.

Properly completing the Ohio EPA 4309 form demands a holistic approach to project planning, an adherence to prescribed environmental standards, and a proactive stance on future growth and sustainability. This process not only facilitates regulatory compliance but also promotes the health and well-being of Ohio's communities and natural resources.
